Rear hydraulic brake assembly is the replacement part for the Coleman B200C, B200R, B200V, RB200 and the Realtree RT200 mini bike. The assembly has the rear brake master cylinder, caliper, and brake line hose.
Master cylinder description:
- Rear brakes
- LH handlebar mounted master cylinder with 178mm black lever
- Brake hose attaches to the inside of the master cylinder
- Fits standard 22mm (7/8 in) handlebars
- Uses DOT3 or DOT 4 brake fluid
- TT-125067 125067

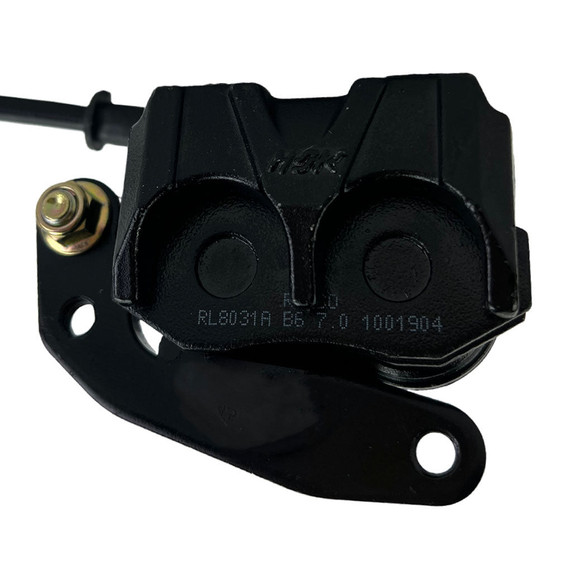

Caliper details:
- Twin cylinder with bracket
- 8mm*1.25 mounting holes are 75mm (2.95 in) center-to-center apart
- Bracket holes are threaded M8
- Includes bleeder screw
Brake hose:
- Approximately 66 inches long
