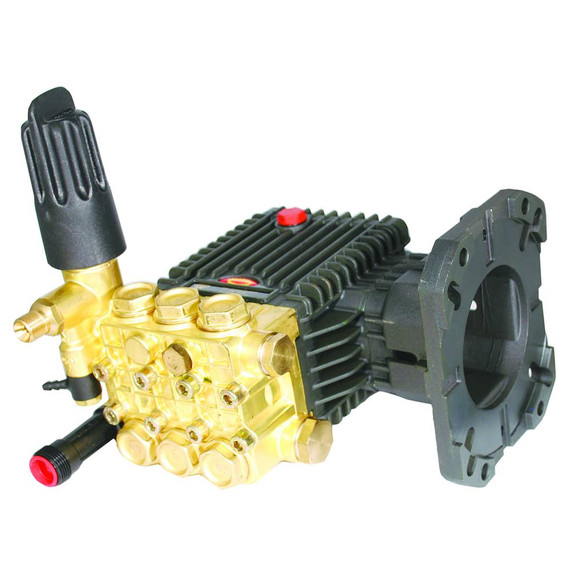

OEM Gas Flanged Pump / Fits General Pump TX1510G8UI

Gas Flanged Pump / Fits General Pump TX1510G8UI
Pack Size:1
Fits General Pump TX1510G8UI


Inlet port thread 1/2"-14 BSP-F, Bore: .591 ", 1" hollow shaft, Large, lightweight connecting rods, Stroke: .394", Triplex plunger pump, SAE J609B, Gallons Per Minute: 4.0, Maximum fluid temperature 165� F., Type: Horizontal Gas Flanged, Forged brass manifold with exclusive lifetime warranty, Made By: An OEM supplier, New long life low and high pressure seals, GHP: 12.3, RPM: 3,400, Manufacturer warranty applies, CrankFits Case Fits Carlton oil capacity 14 oz., Flanged for direct couple to gasoline engines, Discharge port thread 3/8"-19 BSP-F, Built-in unloader and downstream injector on left side of manifold, Maximum inlet required, flooded, TX Series 63, Pump dimensions 8.4" x 8.3" x 4.8", Maximum inlet pressure 125 PSI, Pounds Per Square Inch: 3,000

OEM Cross Reference:
Fits General Pump TX1510G8UI
Specification:
Inlet port thread 1/2"-14 BSP-F, Bore: .591 ", 1" hollow shaft, Large, lightweight connecting rods, Stroke: .394", Triplex plunger pump, SAE J609B, Gallons Per Minute: 4.0, Maximum fluid temperature 165� F., Type: Horizontal Gas Flanged, Forged brass manifold with exclusive lifetime warranty, Made By: An OEM supplier, New long life low and high pressure seals, GHP: 12.3, RPM: 3,400, Manufacturer warranty applies, CrankFits Case Fits Carlton oil capacity 14 oz., Flanged for direct couple to gasoline engines, Discharge port thread 3/8"-19 BSP-F, Built-in unloader and downstream injector on left side of manifold, Maximum inlet required, flooded, TX Series 63, Pump dimensions 8.4" x 8.3" x 4.8", Maximum inlet pressure 125 PSI, Pounds Per Square Inch: 3,000
