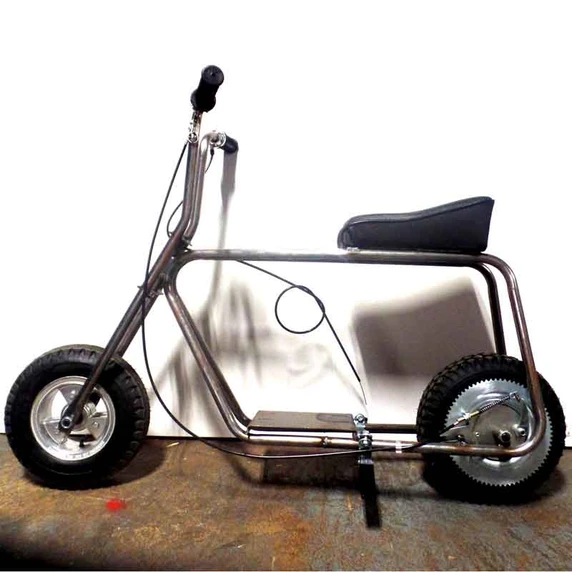

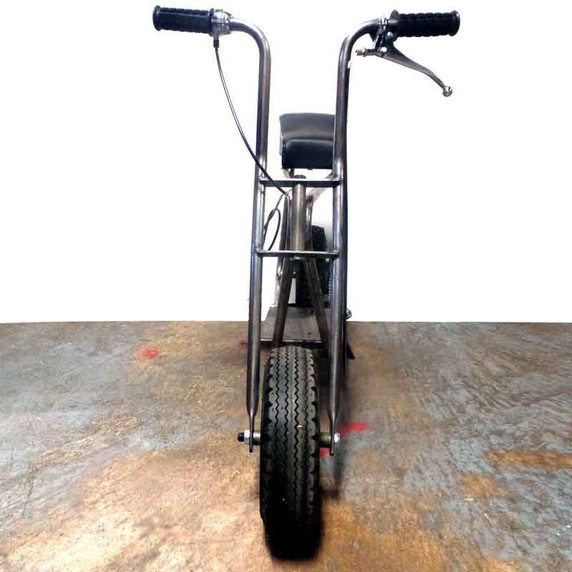

Mini Bike Kit with 5" Wheels

This Azusa kit has almost everything you need to build your own minibike!

Engine and clutch not included.

This item ships separately via UPS Ground from California - cost of freight is included in the sale price.

ATTENTION CANADIAN BUYERS: We will need to manually charge an additional $25-$65 freight charge depending on your zone. We will email you with the exact amount before charging your card.

This is a complete Azusa kit to build a minibike with 5" wheels. Engine and clutch not included. Included in the box are the following:

(1) Mini Bike Frame
(1) Mini Bike Forks
(2) 5" Alum Wheels with 5/8" Precision Ball Bearings
(1) Studded Tire 410/350 x 5" (rear)
(1) Sawtooth Tire 410/350 x 5" (front)
(2) Innertubes 410/350 x 5"
(1) Stamped Steel Drum/Sprocket #35 - 72T
(3) Bushings 5/8"ID x 1"OD x 1-1/4" (2-front / 1-rear)
(1) Bushing 5/8"ID x 1"OD x 1-7/8" (rear)
(3) Bolts 1/4-20 x 5/8" (seat)
(2) Bolts 5/16-18 x 1" (foot pegs)
(2) Locknuts 5/16-18 (foot pegs)
(1) Bushing 5/8"ID x 1"OD x 1-1/8" (rear)
(1) Seat 12" Plush
(1) Brake Lever 7/8" ID
(1) Folding Foot Pegs - Pair
(1) Brake Cable 56" Cable / 48" Housing
(1) Brake Assembly 4-1/2" with 5/8" bore
(1) Throttle Kit with dummy, cable & hsg - 7/8"
(1) Wire Stop w/screw
(1) Wire Swivel w/screw
(6) Conduit Clips 1/"ID x 7/32"
(1) Conduit Clamp 3/16"ID x 7/32"
(1) Straight Conduit Retainer 5/16-24 x 2"
(1) Spring 1/4" ID x 3"
(1) Chain #35-1R x 127 Pitch (47-5/8")
(1) Axle 5/8-18 x 6.75 (front)
(1) Axle 5/8-18 x 8.75 (rear)
(4) Clamp Halves
(1) Bolt 5/8-18 x 6" unplated (fork to frame)
(5) Locknut 5/8-18
(2) Jamnut 5/16-24
