AZUSA

Mini Bike Kit with 10" Steel Wheels (No Frame)

PART NUMBER: 418743
Availability: Ships same day if ordered before 12PM Eastern time.
In Stock Today: 20
Ships in: Ships in 1-3 Days
$679.95

This Azusa kit has almost everything you need to build your own minibike!

Frame, forks, engine and clutch not included.



This item ships separately via UPS Ground from California - cost of freight is included in the sale price.

ATTENTION CANADIAN BUYERS: We will need to manually charge an additional $25-$50 freight charge depending on your zone. We will email you with the exact amount before charging your card.

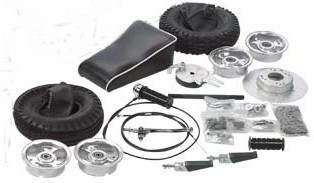

This is a complete Azusa kit to build a minibike with 10" steel wheels. Frame, forks, engine and clutch not included. Included in the box are the following:

(1) 10" Plated Steel Wheel with 5/8" Precision Ball Bearings
(1) 10" Plated Steel Wheel with Drum & 72T Sprocket
(2)
Universal Tread Tires 350 x 10 (front & rear)
(2) Innertubes 350 x 10
(2) Bushings 5/8"ID x 1"OD x 3/4" (front)
(1) Bushing 5/8"ID x 1"OD x 5/8" (rear)
(1) Bushing 5/8"ID x 1"OD x 1-5/8" (rear)
(3)
Bolts 1/4-20 x 5/8" (seat)
(2) Bolts 5/16-18 x 1" (foot pegs)
(2) Locknuts 5/16-18
(1) Bushing 5/8"ID x 1"OD x 1-1/4" (rear)
(1) Seat 12" Plush
(1) Brake Lever 7/8" ID
(1) Folding Foot Pegs - Pair
(1) Brake Cable 56" Cable / 48" Housing
(1) Brake Assembly 4-1/2" with 5/8" bore
(1) Throttle Kit with dummy, cable & hsg - 7/8"
(1) Wire Stop w/screw
(1) Wire Swivel w/screw
(6) Conduit Clips 1/"ID x 7/32"
(1) Conduit Clamp 3/16"ID x 7/32"
(1) Straight Conduit Retainer 5/16-24 x 2"
(1) Spring 1/4" ID x 3"
(1) Chain #35-1R x 127 Pitch (47-5/8")
(1) Axle 5/8-18 x 6.75 (front)
(1) Axle 5/8-18 x 8.75 (rear)
(4) Clamp Halves
(5) Locknut 5/8-18
(2) Jamnut 5/16-24
