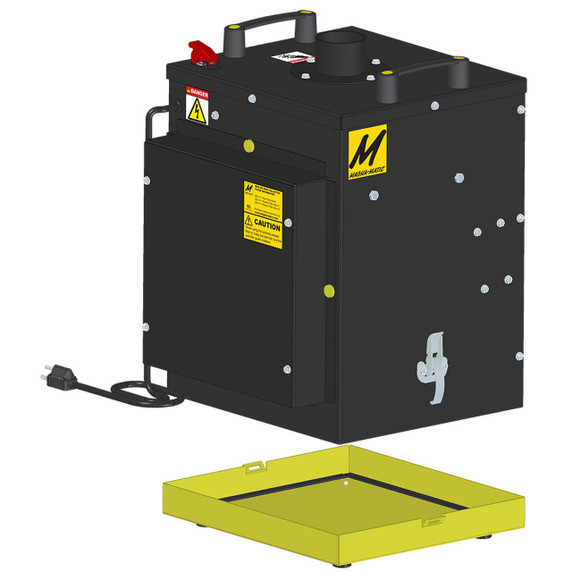

Magna-Matic MAG-200-4H Dust Collector for MAG-8100 & MAG-8200 Sharpeners

MAG-200-4H VERSION
Set-up and ready to use for all MAG-8100 and MAG-8200 Series Sharpeners

An industrial dust collector designed for any dry metal grinding, sanding, or polishing operations. The MAG-200 features 3 stages of filtration a metal mesh, MERV 8 pad filter, and MERV 13 pleated filter and has a quiet 70 decibel operating noise level. It will safely draw live sparks, dust, and grit and filter the air that passes through at a MERV 8 rating, lastly the air passes through the MERV 13 filter.

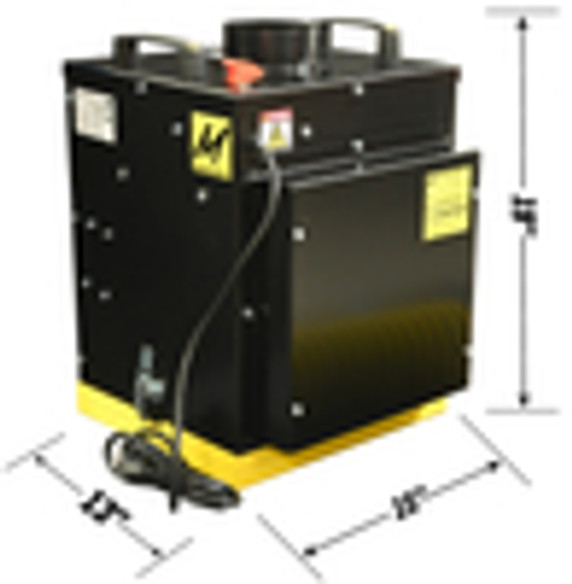

Dimensions: 15" x 13" x 19" tall

Performance Data:

• 4" Inlet CFM = 400
• Pressure 6.5" H2O @ 0 CFM
• 70 decibel Noise Level

Three Stages of Filtration

• METAL MESH FILTER designed to break up air flow and kill sparks
• MERV 8 FILTER rated filters will remove particles 3 to 10 micron in size and larger, which includes most dust and grit.
• MERV 13 FILTER rated filters will remove particles 0.3 to 1 micron in size and larger, which includes fine dust and some fumes/smoke.

Included In Box

• 1 MAG-200 Dust Collector (110 volt, with 7 foot long cord)
• 1 Inlet 4" dia Part 200-36
• 1 Metal Mesh Filter (installed) Part # 200-12
• 1 MERV 8 Pad Filter (installed) Part# 200-15
• 1 Spiral 4" dia hose 16" long
• 1 Third Stage Filter Shroud
• 1 MERV 13 Pleated Filter Part# 200-17

We strongly recommend adding the 200-70 spark arresting box be added if you use the MAG-200 with any BELT GRINDER due to the higher spark temperatures of belt grinding.

Country of Origin:USAVoltage:110v / 60HzAmperage (Start/Run):14/7Horsepower:0.5 HPMotor RPM:3450 RPMTransmission:Direct driveCFM:400
