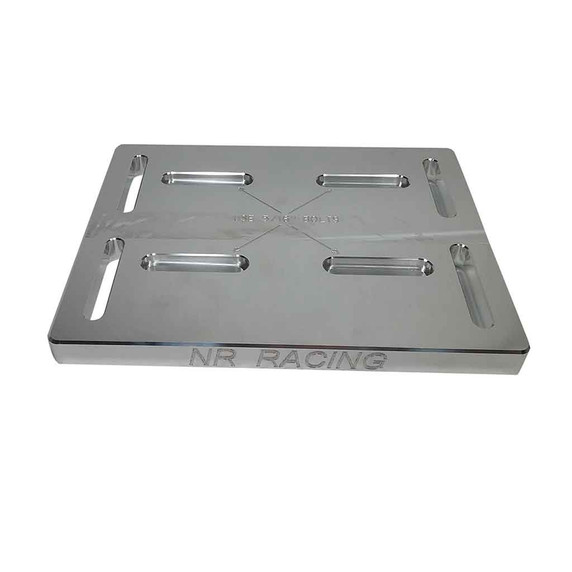

Billet Engine Adapter Plate for DB30 to Big Block 8-13HP Engines
PART NUMBER:
1602908
Availability:
Ships same day if ordered before 12PM Eastern time.
In Stock Today:
5
Ships in:
Ships Today
$69.99
GX390 Motor Plates allows for an easy foolproof way to mount larger 9 hp and up (GX270, GX390, 420 CC) engines in a Mini-Bike, Doodle Bug, Baja , Motovox and many other custom applications. The mount allows for left to right engine adjustment for precise sprocket alignment. as well as front to rear adjustments for chain tension.This Mount system works with engines that have the industry standard LARGE 7 5/8" mount spacing.
FIts the Fits Honda GX 240 to GX390, 11HP/13HP/15HP Chinese OHVs, Predator 420, Large Fits Briggs, and other brands in 9 HP and up range that use 7 5/8" Bolt Spacing
Will not fit the 460cc and 16/18cc engines that use the 8 1/2" spacing
Plate is made of 3/4" Aluminum to prevent flexing.
Mounting bolts not included, but uses standard 5/16" bolts to attach the plate to the frame and 3/8" to attach the engine to the plate.
Billet Engine Adapter Plate for DB30 to Big Block 8-13HP Engines
$69.99
GX390 Motor Plates allows for an easy foolproof way to mount larger 9 hp and up (GX270, GX390, 420 CC) engines in a Mini-Bike, Doodle Bug, Baja , Motovox and many other custom applications. The mount allows for left to right engine adjustment for precise sprocket alignment. as well as front to rear adjustments for chain tension.This Mount system works with engines that have the industry standard LARGE 7 5/8" mount spacing.
FIts the Fits Honda GX 240 to GX390, 11HP/13HP/15HP Chinese OHVs, Predator 420, Large Fits Briggs, and other brands in 9 HP and up range that use 7 5/8" Bolt Spacing
Will not fit the 460cc and 16/18cc engines that use the 8 1/2" spacing
Plate is made of 3/4" Aluminum to prevent flexing.
Mounting bolts not included, but uses standard 5/16" bolts to attach the plate to the frame and 3/8" to attach the engine to the plate.
