ARC Racing

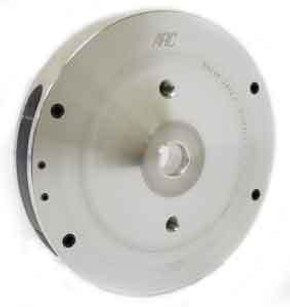

ARC 6603 Billet Flywheel, Adj. 3HP Diam. Jr Dragster 2.90lbs
SFI certified billet aluminum 3 hp diameter flywheel for Jr Dragster engines (no fins). The keyway is in the stock position when the flywheel's indexed adjustable timing hub is set to the negative side of the index range. Index marks are in 2 ° increments which allows up to 14 ° timing advance from the stock position (24 °-38 ° range). The flywheel weighs 2.9 lbs and has a super-strong rare earth neodymium magnet.
If your engine's block is not designed for a 3 hp diameter flywheel, you may need a #5990 coil bracket
