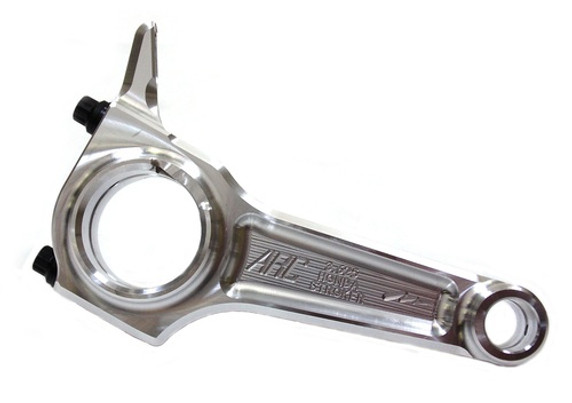

6765 GX200 3.525 Stroker Billet Rod
PART NUMBER:
1604147
Availability:
Ships same day if ordered before 12PM Eastern time.
In Stock Today:
1
Ships in:
Ships Today
$83.95
Billet Rod for the ARC Billet stroker crank. 3.525" center to center for a 998" crank pin and a .490" wrist pin for a modified GX200, 196cc Clone or Harbor Freight Predator 212cc. Made from domestic 7075-T651 aircraft grade aluminum. This is a "drop in" rod that is .100" shorter than the 6265 rod and does not normally require machining of the .640 compression height 11132P 2 ring pistons when used with the 6573 Alloy stroker crank. Can also be used as a "drop in" with the .640 compression height Wiseco 3 ring pistons. Comes with custom ARP rod bolts and bearings.
Rod bolt torque 170 in/lbs lubricated
Will not work on OEM Honda/Clone or Predator cranks
6765 GX200 3.525 Stroker Billet Rod
$83.95
Billet Rod for the ARC Billet stroker crank. 3.525" center to center for a 998" crank pin and a .490" wrist pin for a modified GX200, 196cc Clone or Harbor Freight Predator 212cc. Made from domestic 7075-T651 aircraft grade aluminum. This is a "drop in" rod that is .100" shorter than the 6265 rod and does not normally require machining of the .640 compression height 11132P 2 ring pistons when used with the 6573 Alloy stroker crank. Can also be used as a "drop in" with the .640 compression height Wiseco 3 ring pistons. Comes with custom ARP rod bolts and bearings.
Rod bolt torque 170 in/lbs lubricated
Will not work on OEM Honda/Clone or Predator cranks
