DynoCams
310 Grind, Welded Lobe, Predator 224cc
PART NUMBER:
1924699
Availability:
Ships same day if ordered before 12PM Eastern time.
In Stock Today:
2
Ships in:
Ships Today
$133.00
Description

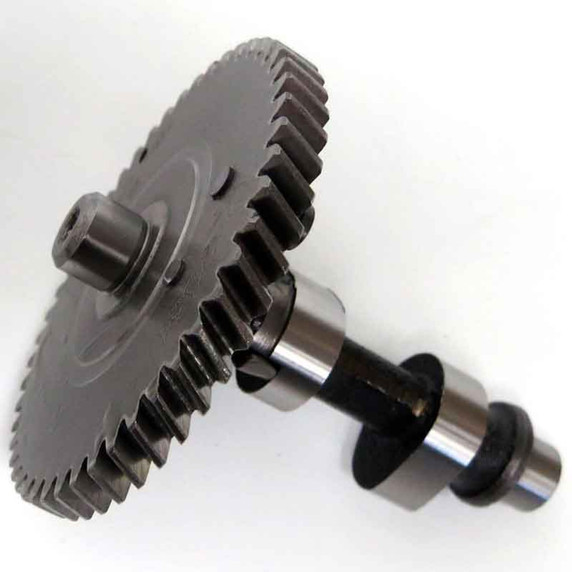

The 310 is a monster camshaft with low lift. This cam has all the duration of our bigger cams, but with .310" lift so ratio rockers can be used in OHV modified applications. This cam requires an upgraded spring package, billet rod, and billet flywheel.
The Lobes on this Cam are Welded.
The 224cc camshafts have .550" main journal sizes. The cams have been clearanced between the lobes and feature narrow lobes. These modifications allow for rod clearance due to the 58mm stroke. The compression release is also thinner to clear the 58mm crank counter weight. These camshafts work with Harbor Freight Predator 224cc and Tillotson 224cc engines.
Specs
Engine: Harbor Freight Predator 224cc, Tillotson 224cc
Target (MAX) RPM: 9000
Spring Pressure (In / Ex): 34-36 lbs
Valve Lash (In/Ex): .003"
Ignition Timing: 34 Deg BTDC
Profile
Intake Exhaust
Open: 57.15 BTDC 96.10 BBDC
Close: 95.30 ABDC 57.95 ATDC
Lift: .309" .309"
C/L: 108.0 ATDC 108.0 BTDC
DUR @ 50: 255.00 Deg 259.95 Deg
