DynoCams

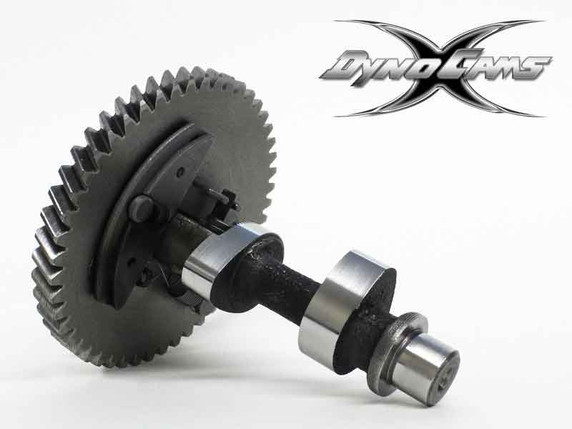

275 Grind, Welded Lobe Clone Core Cam
This cam is to be used in mild modified applications. It will require an upgraded spring package, billet rod, and billet flywheel.
This cam is to be used in mild modified applications. It will require an upgraded spring package, billet rod, and billet flywheel.
Engine: 196cc OHV Clone
Recommended Class: Modified
Target (MAX) RPM: 7000
Spring Pressure (In / Ex): 26 lbs
Valve Lash (IN/EX): .003"
Ignition Timing: 32 Deg BTDC
INTAKELIFT: .276
Dur @ .050": 239.5 Deg.
C/L: 108 ATDC
EXHAUSTLIFT: .276
DUR @ .050": 238.8 Deg.
C/L: 110 BTDC
THE LOBES ON THIS CAM ARE WELDED.
Processed and ground by the hard working employees of DynoCams in the USA.
